YANMAR Combined Heat and Power (CHP)


YANMAR Technology

YANMAR’s Combined Heat and Power system uses an internal combustion engine, powered by clean natural gas or propane, to produce both heat and electric power. The unit efficiently utilizes up to 88% of the fuel burn versus 33% burn rate of conventional, from-the-grid sources.

For more information, visit www.yanmar-es.com

Model Rated Output Voltage,
Rated Recovered Heat Rated Hot Water Temp Outlet Net Weight

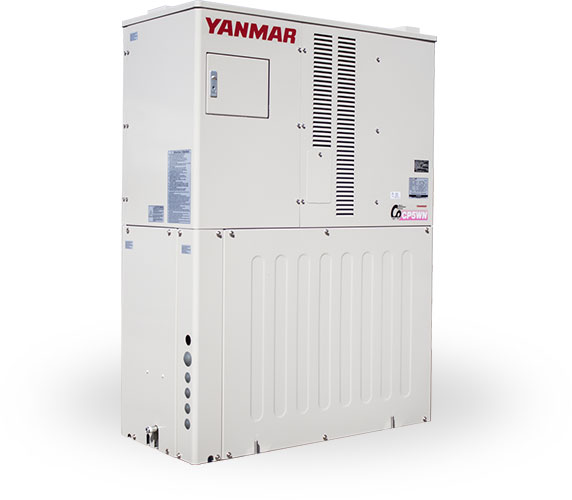

CP5WN Combined Heat and Power

CP5WN Combined Heat and Power

5 kW 240V, 60Hz 34,100 BTU/h 149 F (65 C) 882 lb (400 kg)
CP10WN CHP Systems

CP10WN CHP Systems

10 kW 240V, 60Hz 57,300 BTU/h (natural gas); 65,200 BTU/h (propane) 158 F (70 C) 1,653 lb (750 kg)
CP5WN Combined Heat and Power

CP35D1 CHP System

35 kW 208V, 60Hz 204,040 BTU/h 176 F (80 C) 3,153 lb (1,430 kg)
